Specifications:



Operating Voltage : DC 3.3V

Logic level  : 3.3V LvTTL  Logic level

RS485 BUS IC : SP3485

Read and write automatic control IC :SM74HC04

Size : 17.9x11.7x2.8mm(

Weight : 0.7g

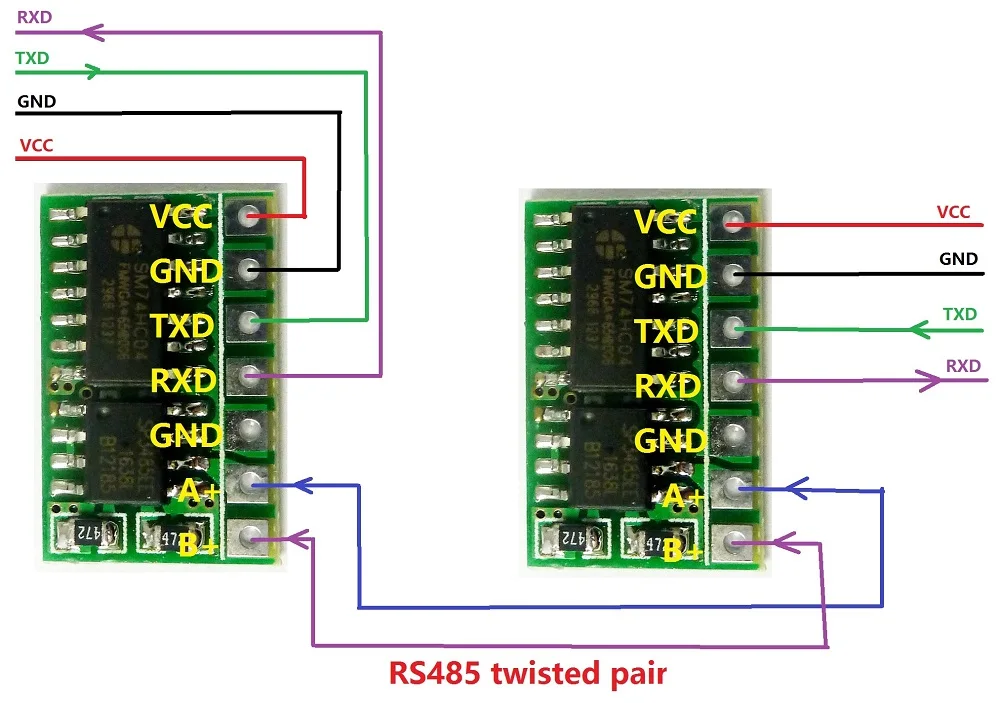

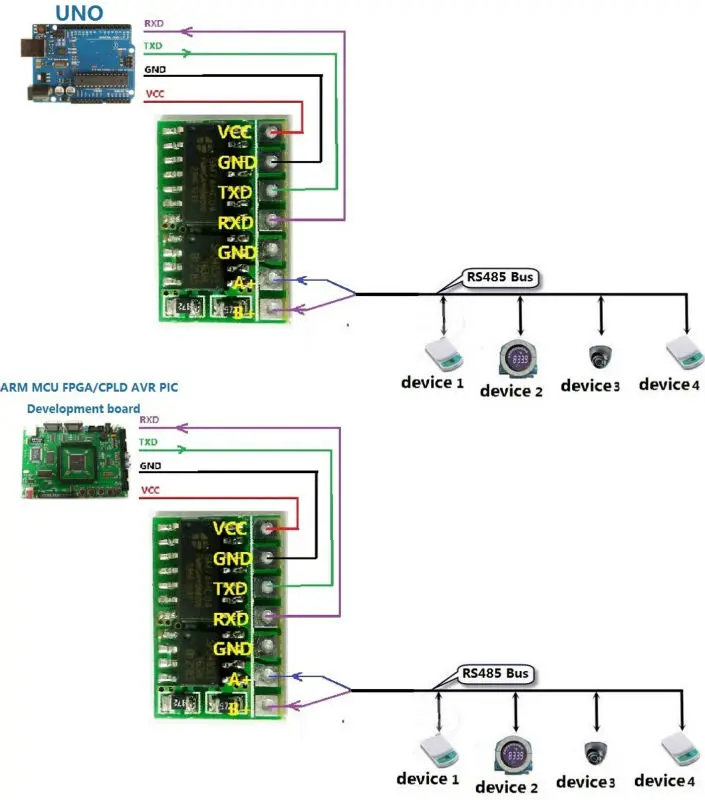

Wiring Diagram:





Application:



RS485 Temperature and humidity sensor

PTZ camera

LED controller

MODBUS RTU

RS485 Relay

485 sensor

automated manufacturing line

Wifi to RS485(ESP8266)

Bluetooth to RS485(HC-05/HC06)

Wireless Module to RS485(HC-11)

Ethernet to RS485( Ethernet TTL Module)



Package Included:



1 x R411B01 3.3V Auto RS485 to TTL RS232 Transceiver Converter
