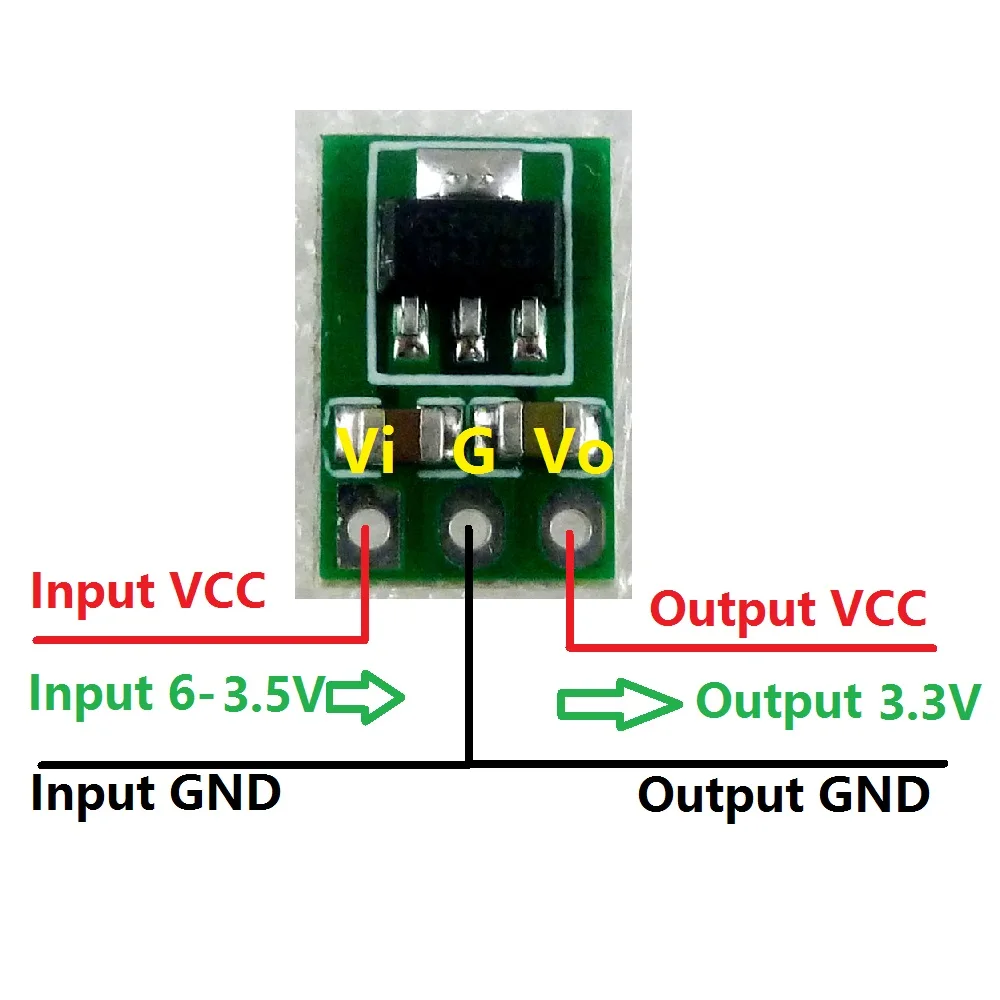

Mini DC 3.5-6V to 3.3V DC-DC Converter Step Down Buck Regulator LDO Module Voltage regulator Board for 18650 li-ion AAA Dry Cell Batteries ESP8266

Get Mini DC 3.5-6V to 3.3V DC-DC Converter Step Down Buck Regulator LDO Module Voltage regulator Board for 18650 li-ion AAA Dry Cell Batteries ESP8266

Description:



Input voltage: DC 3.5-6V

Output voltage: DC 3.3V

Long time maximum output current:  300mA

Short time maximum output current:  400mA

Highly Accurate: ±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ - +85℃

Size : 11.6 x 7.8 x 2.5 mm

Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered.



Note:



1. Input voltage can not be greater than the maximum input range.

2. Output power can not be greater than the maximum load for a long time.

3. Input power must be greater than the output power, because the power consumption of the module itself.



Applications:



3.3V MCU ARM CPU FPGA/CPLD

5V 3.7V TO 3.3V lithium battery-powered systems

3.3V Motor​ Toy

WIFI esp8266 Module

CCTV camera

Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee

Smart home / home automation

Battery Charger

Pre-Regulator for Linear Regulators

FM radio

Battery powered equipment

Audio amplifier



Package Included:



1 x Mini DC 3.5-6V to 3.3V DC-DC Converter Module
