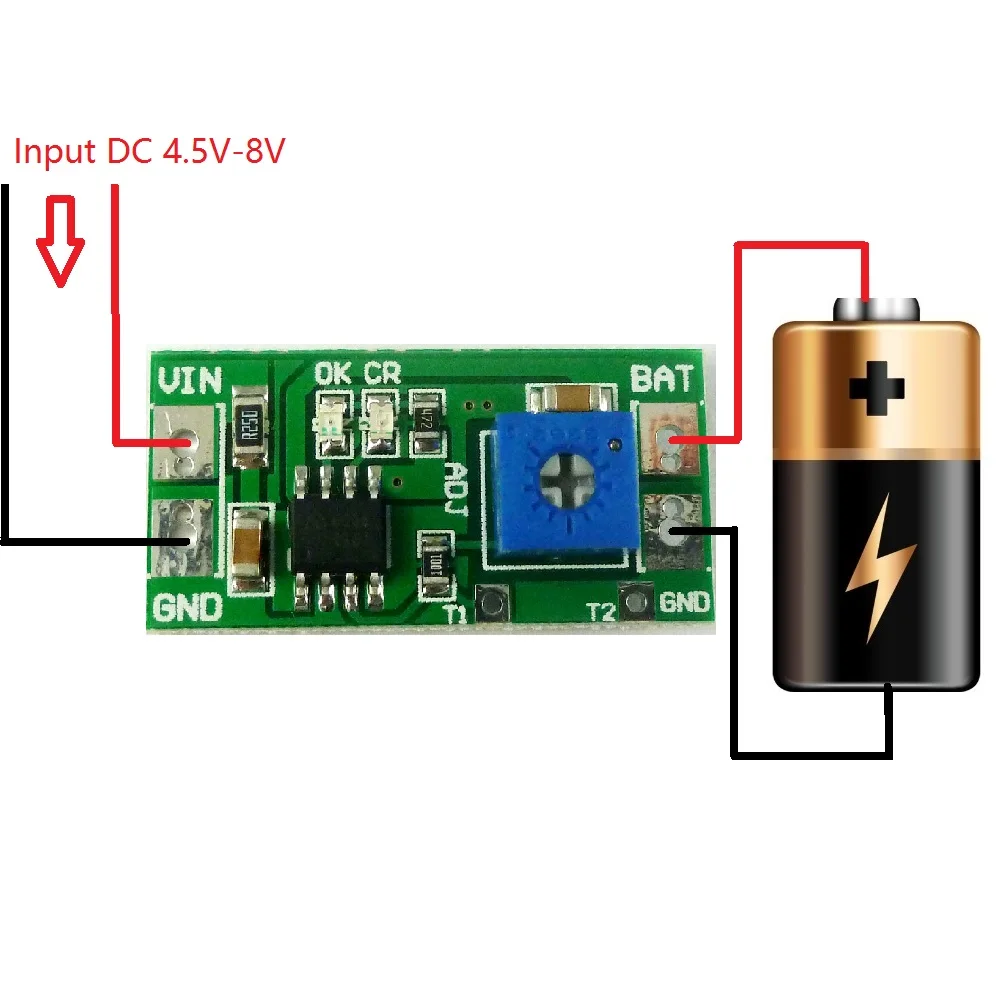

DD07CRTA 50-1000mA Adjustable 3.7V 4.2V Lithium Ion Rechargeable Lithium Battery Charger Module

Lolla March 17, 2020 0 Comments

Get DD07CRTA 50-1000mA Adjustable 3.7V 4.2V Lithium Ion Rechargeable Lithium Battery Charger Module

Specifications:

Input voltage : DC 4.5V-8V(Recommend DC 5V)

Charger current : 50-1000mA(Adjust Rprog value)

Full charge voltage : 4.2V+-2%.

Led indicator :

''OK'' LED is fully charged OR battery failure status indicator;

''CR'' LED is charge status indicator

Operating ambient temperature : -40° to +85°

Size : 30 x 15 x 6mm

Features:

- 100-2700mAh(50-1000mA) Lithium Battery Charger Module - Linear charging.

- It can be used DC 4.5V-8V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge

- It comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.

- Charger current(mA) = Battery capacity(mAh) * 0.37

for example :

1000mAh lithium battery recommended charger current is 370mA

2000mAh lithium battery recommended charger current is 740mA

Applications:

Lithium Battery 14500,14650,17490,18500,18650,26500
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Wife Bluetooth Applications
